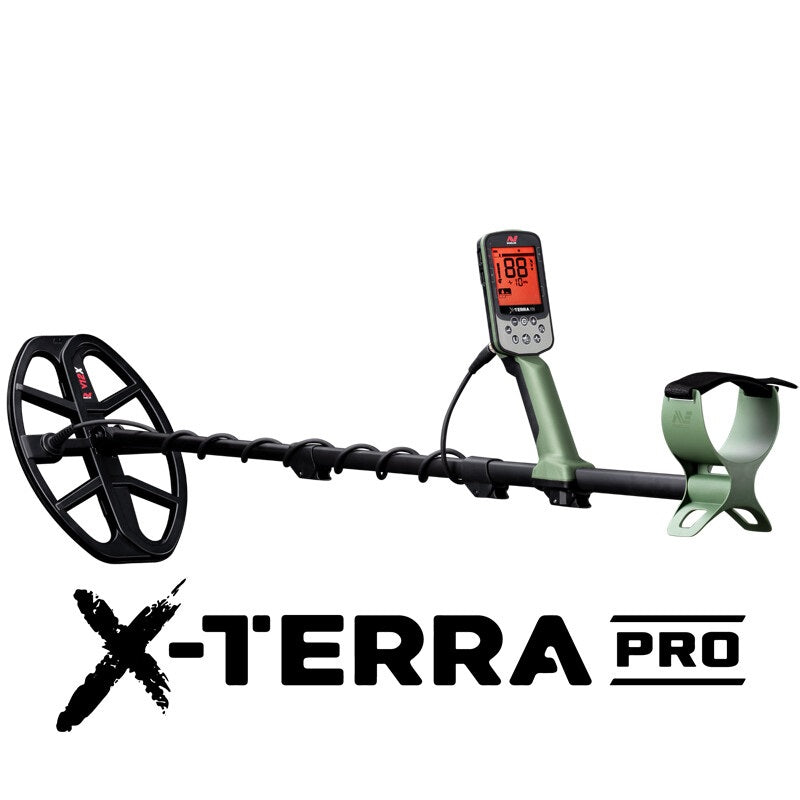

Minelab X-Terra PRO
X-TERRA PRO by Minelab is a completely new detector designed from the ground up. It leverages the robust compact form factor of the new EQUINOX series as well as the rich history of the X-TERRA 305/505/705 switchable frequency detectors. X-TERRA PRO introduces the innovative new PRO-SWITCH technology.
Included: V12X Coil with Skidplate, waterproof to 5 m (16 ft)
Optional Accessory: V8X Elliptical Double-D, V10X Elliptical Double-D
Technical Specifi cations
Search Modes Park, Field, Beach
All-Metal Shortcut Yes
Custom Search Profiles 6
Operating Frequencies (kHz) Park and Field: 5, 10, 15 | Beach: 8
Noise Cancel Auto (19 Channels)
Ground Balance Auto, Manual, Tracking
Sensitivity 1 to 25
Target Volume 0 to 25
Threshold Level 0 to 25
Threshold Pitch Fixed
Target Identification (TID)
119 segment notch discrimination:
Ferrous: -19 to 0 | Non-ferrous: 1 to 99
Target Tones 1, 2, 5, All Tones (AT), Depth (dP)
Tone Break Ferrous (t1)
Tone Volume Tone 1 adjustable: 0 to 25
Recovery Speed 1 to 3
Depth Indicator 5 levels
Discrimination Segments 30 segments (in increments of 4 Target IDs)
Pinpoint Mode Yes
Wireless Audio Yes
Length (approx.)
Collapsed: 63 cm (25 in)
Extended: 138 cm (54 in)
Weight (including batteries) 1.3 kg (2.9 lbs)
Display Monochrome LCD
Display and Keypad
Backlight (red)
Off, High, Low
Flashlight On, Off
Vibration (Master and Ferrous) On, Off
Supplied Coil V12X 12" Double-D Elliptical coil with skid
plate
Audio Output
In-built loudspeaker, Wired 3.5 mm (⅛")
headphones, Wireless headphones
Battery 3.7 V / 5100 mAh Internal Lithium-Ion battery

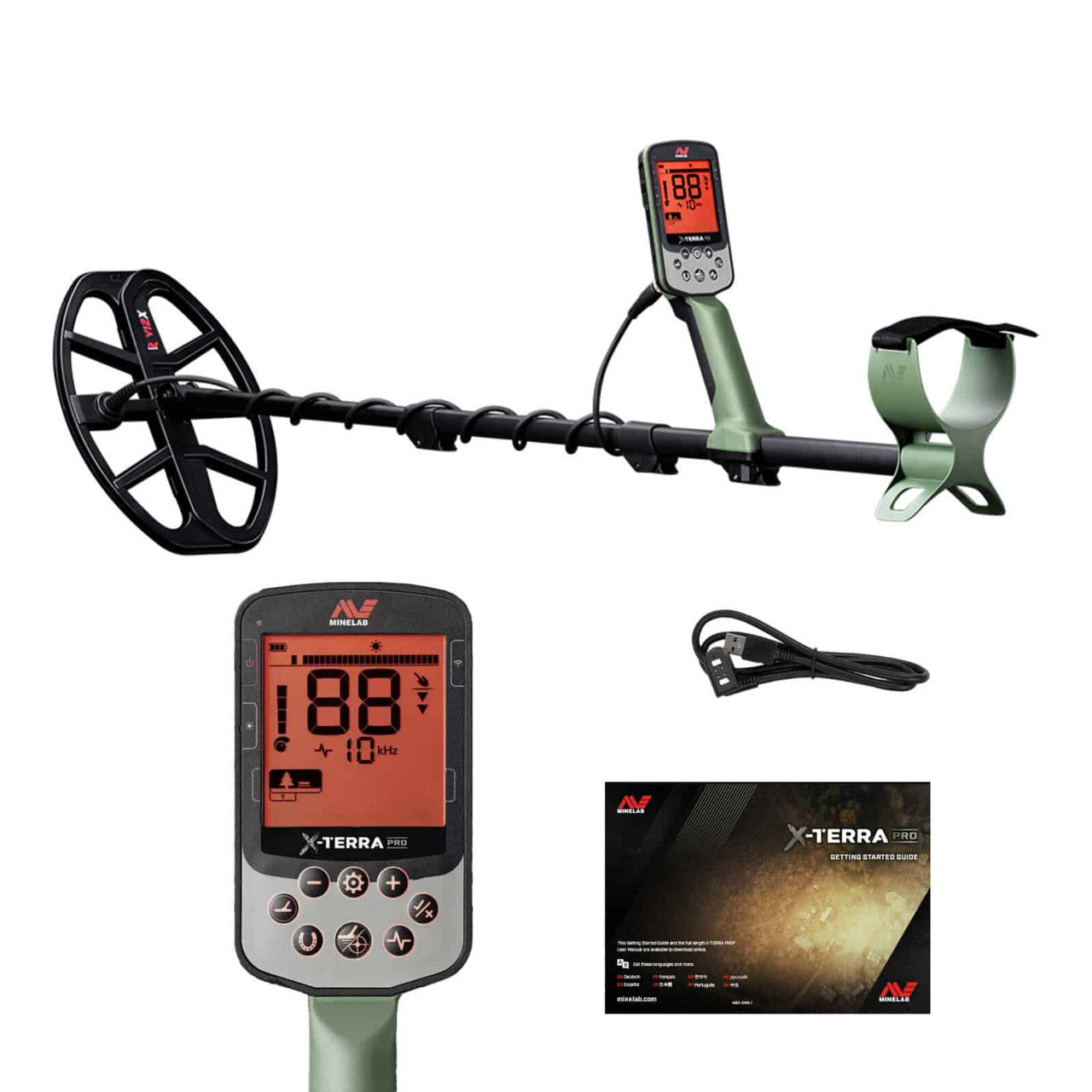

Additional Included Accessories Getting Started Guide, Charging Cable
Waterproof 5 m (16 ft) IP68
Operating Temperature Range -10°C to +40°C (+14°F to +104°F)
Storage Temperature Range -20°C to +70°C (-4°F to +158°F)
Key Technologies Pro-Switch™
