Manticore Minelab Package

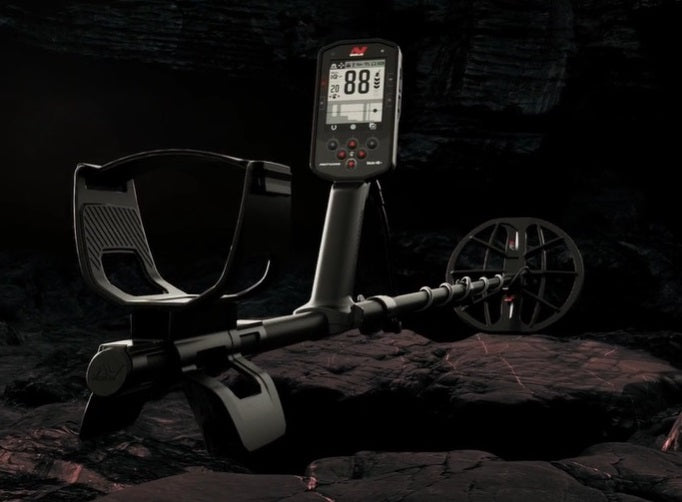

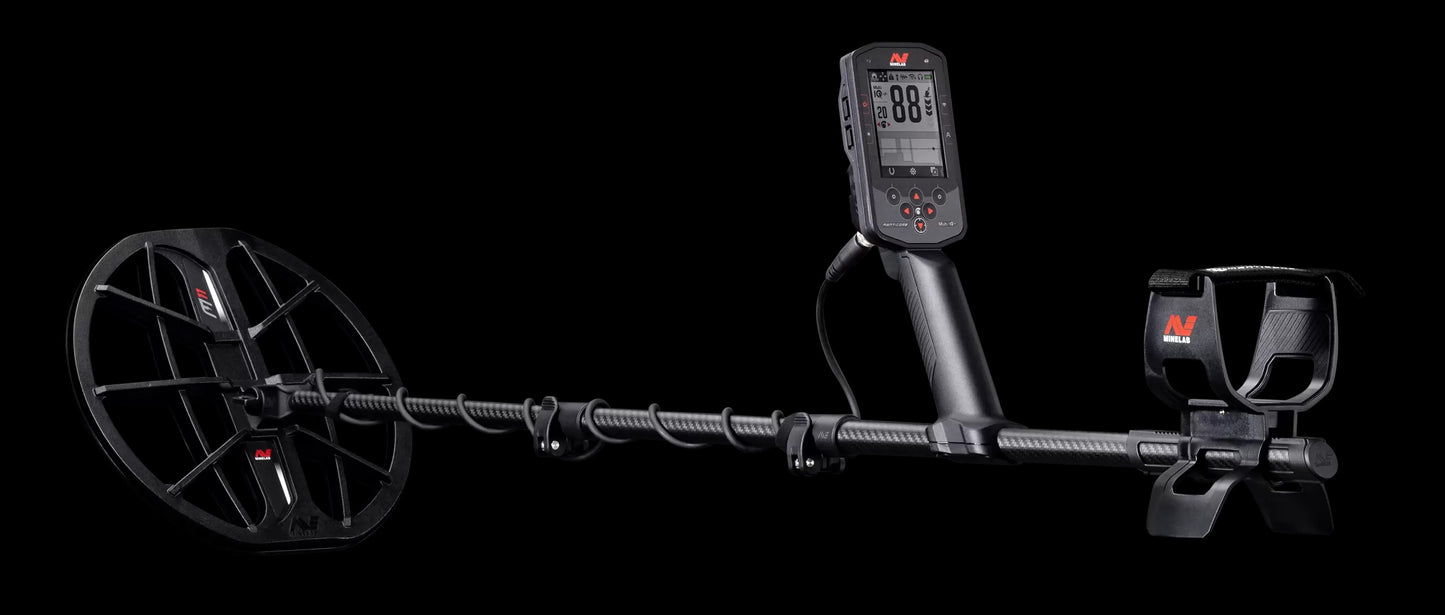

MANTICORE with Multi-IQ+

The highest-powered simultaneous multi-frequency machine on the market — nothing else comes close.


MANTICORE with Multi-IQ+ is the most powerful, fastest, and precise metal detector in Minelab’s history. The heart of MANTICORE is its super-charged Simultaneous Multi-Frequency (MULTI-IQ+) engine. This feat of innovation generates an incredible 50% power increase over the best-selling detector series of all time: EQUINOX. When combined with advanced 2D Target Identification (ID) and rich audio options, the detectorist has every bit of vital information arriving at their eyes and ears. MANTICORE is an unrivalled detecting experience that pushes the boundaries of detecting to deliver more power, more depth, and more finds.

Detect Modes (Customisable)
All-Terrain (5), Beach (4), Goldfield (1)
Operating Frequencies
Multi-IQ+, 5 kHz, 10 kHz, 15 kHz, 20 kHz, 40 kHz
Noise Cancel
Auto, Continuous Auto, Manual (-9 to +9)
Ground Balance
Auto, Manual, Tracking
1 to 35
Target Identification
Conductive: 0-99 with ferrous indication

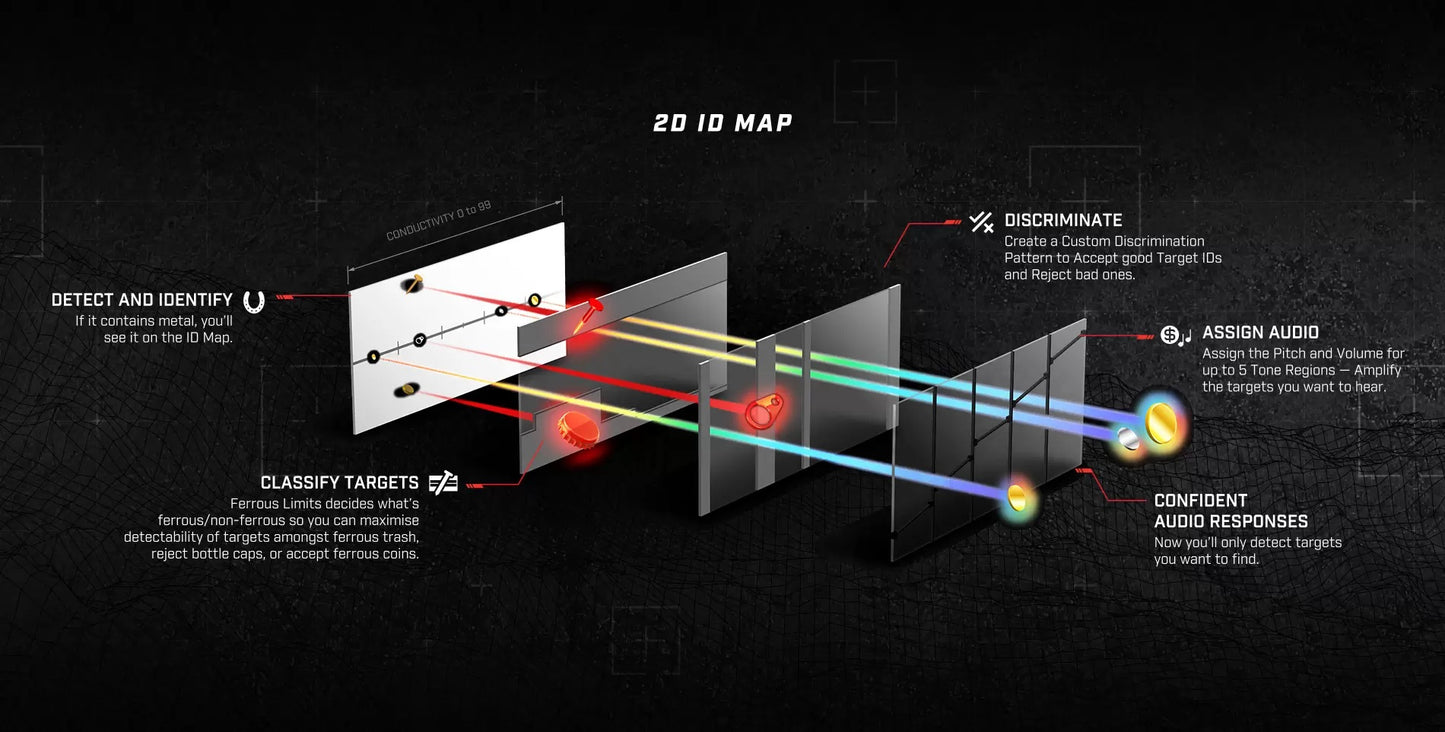

2D ID Map
Two-Dimensional ID Map System with Target Trace
Target Tones
1, 2, 5 - Tone | 1, 2, 5 - Region All Tones
Target Volume
0 to 25
Target Pitch
1 to 50
Ferrous Volume
0 to 25
Ferrous Pitch
1 to 50
Audio Themes
Normal, Enhanced, Continuous Pitch
Volume Profiles
Simple, Medium, Rich
Threshold Level
0 to 25
Threshold Pitch
1 to 50
Recovery Speed
0 to 8
Ferrous Limits
Upper: 0 to 14 | Lower: 0 to 9
Ferrous Limits Custom
1 to 4
Soft Keys: 2 (Action Bar), 1 (User Button)
Depth Indicator
5 levels

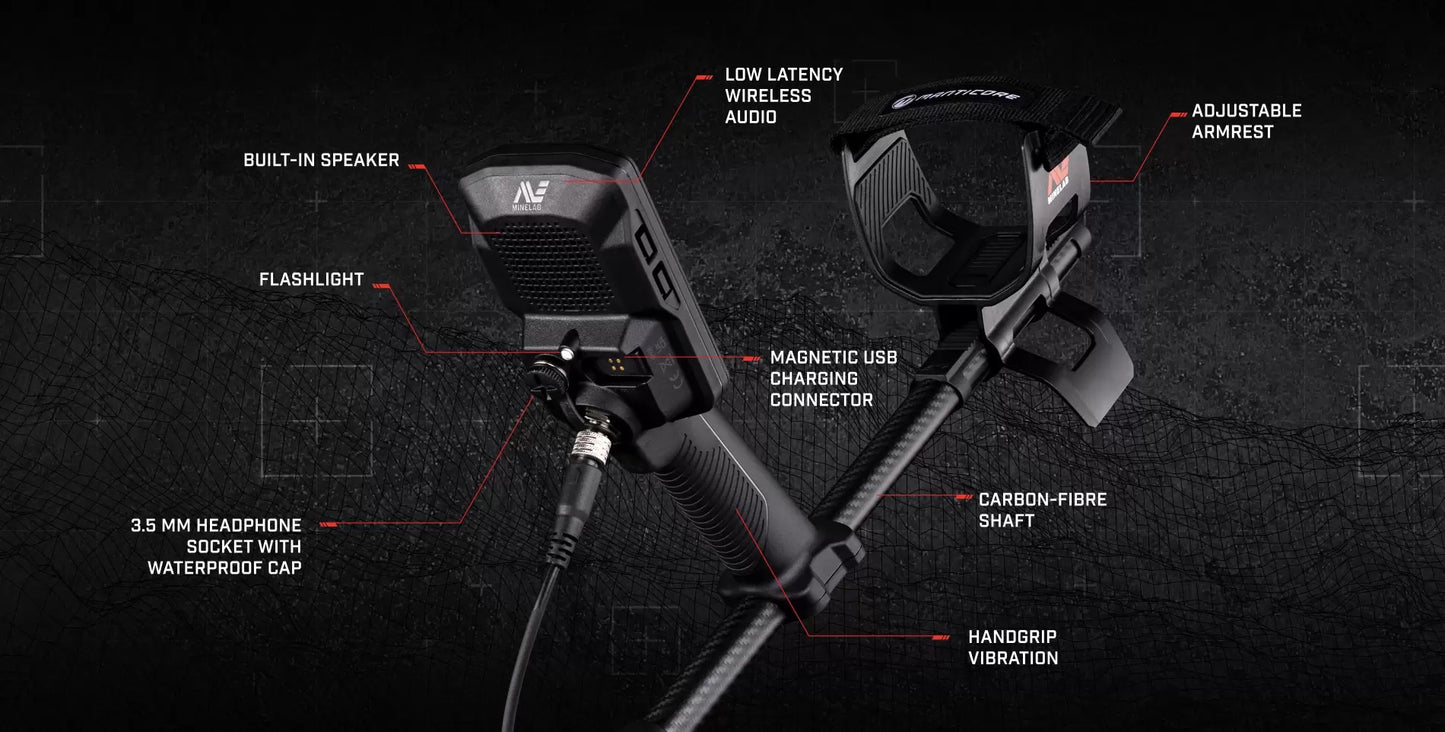

Shaft System
3-piece highly collapsible carbon-fibre
Extended Length
1440 mm / 56.7 inch
Collapsed Length
630 mm / 24.8 inch
1.3 kg / 2.9 lb

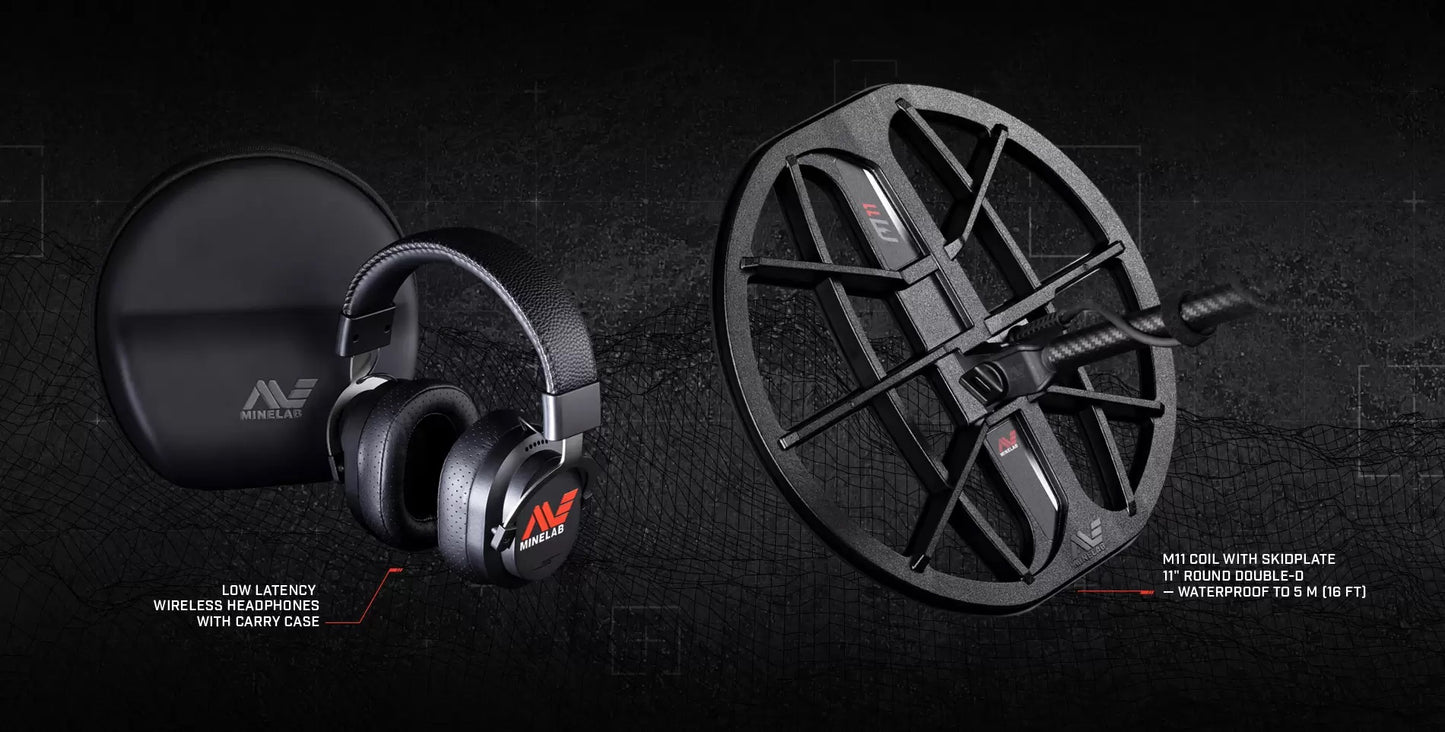

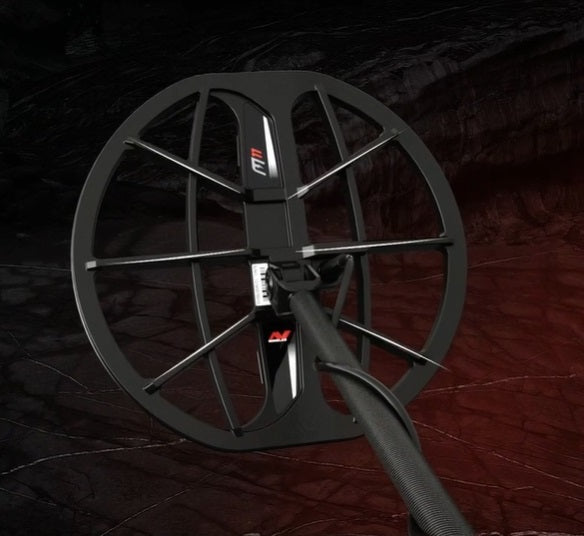

Standard Coil (M11)
11-inch round Double-D coil with skidplate (waterproof to 5 m / 16 ft)
Audio Output
Speaker | 3.5 mm (1/8") headphones | Wireless low latency headphones
Headphones (Included)
Minelab ML-105 wireless low latency headphones (non waterproof)

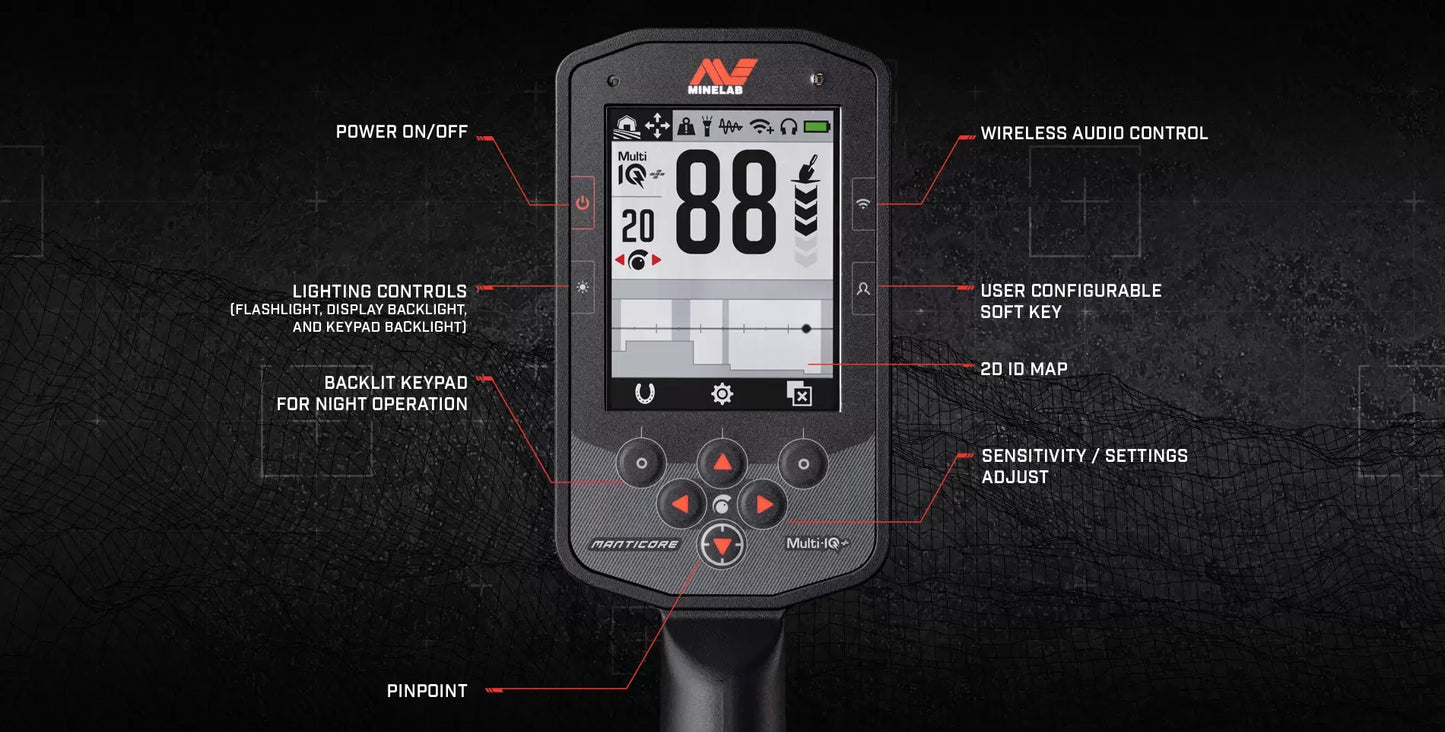

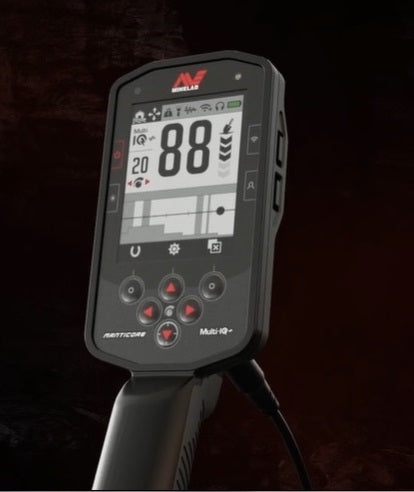

Colour LCD
Display Backlight
Manual (1 to 10), Auto Adjust
Keypad Backlight
On, Off
Low, Medium, High, Off
Handgrip Vibration
On, Off
Internal rechargeable Lithium-ion battery
Battery Runtime
Approx. 9 hours
Battery Charge Time
Approx. 7 hours
Waterproof to 5 m / 16 ft, IP68
Key Technologies
Multi-IQ+ (High Power Simultaneous Multi-Frequency)
Included Accessories
USB Charging Cable, 5x Screen Protectors, 3.5 mm Headphone Audio Cable, Headphone Case
Software Upgradable
Yes, via USB connection (Windows or Mac OS compatible)
Please refer to for full warranty terms and conditions. Register your product warranty online at


High Power Simultaneous Multi-Frequency

Low frequencies typically give more depth on large targets than high frequencies, which are usually more sensitive to small targets. With Multi-IQ+ you can operate across the full spectrum of frequencies simultaneously for maximum results.
