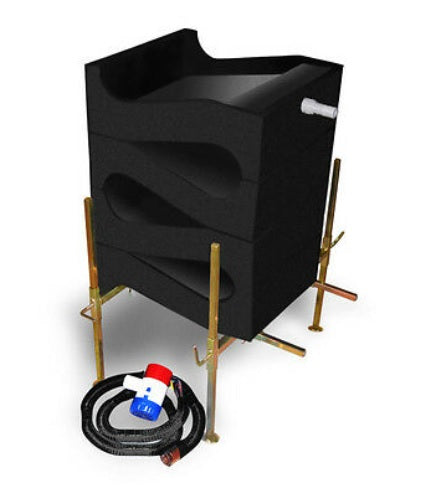

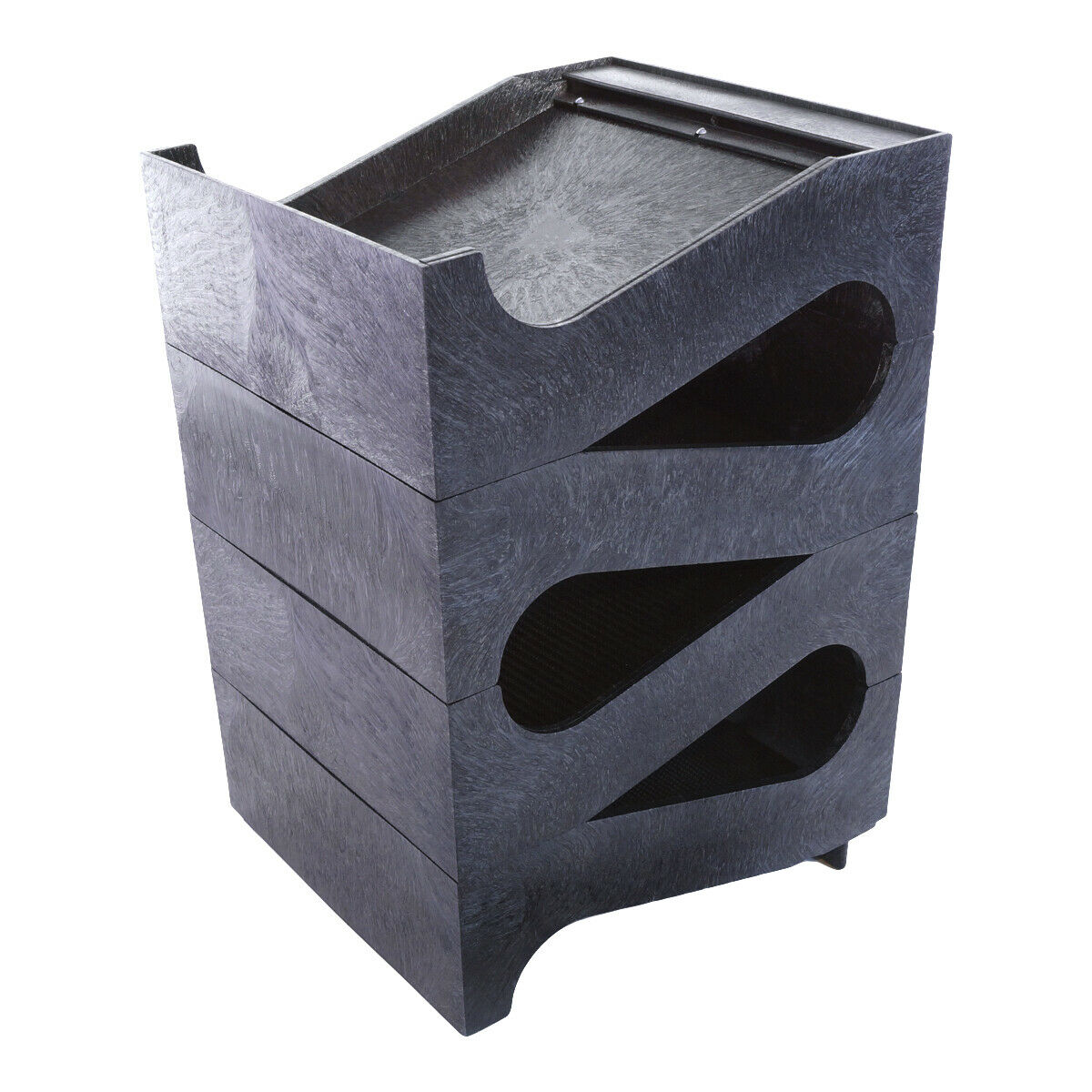

GOLD CUBE 4 STACK DELUXE
Our most popular model features:

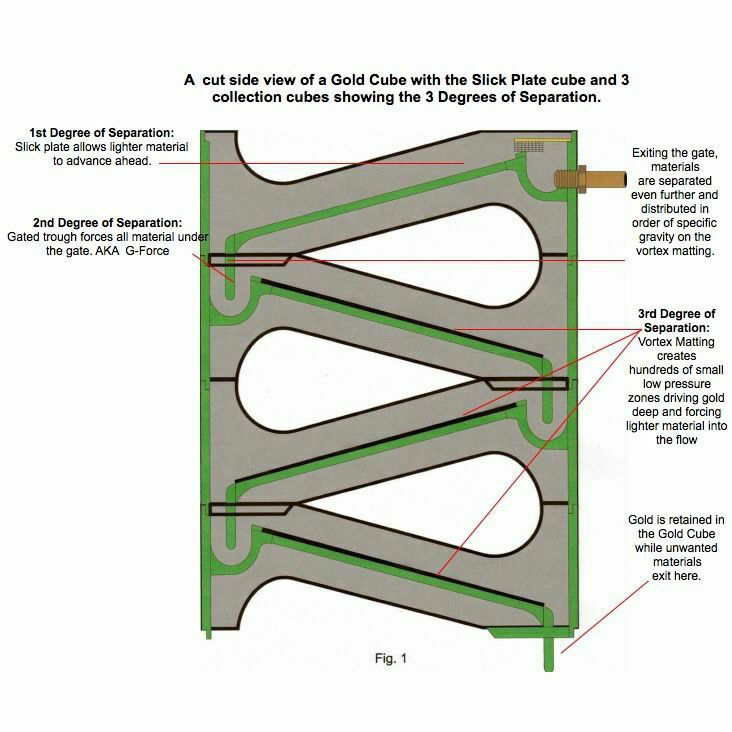

Technology – Unique Patented process incorporates 3 degress of separation.
Versatility – Mine placer, beach, crushed ore, free milling ore, mine dump testing and can be set up in the water or off site recirculation.
Portability – Modular design for fast setup and easy exit. Fit in the trunk yet gets as much gold as machines many times it’s size.
Efficiency – Set it up level, turn on pump, and process 1,000 pounds of 1/8th classified material to a few ounces in minutes.
Durability – Made in America with LDPE (low-density poly) just like your cutting board at home.
There’s no doubt that you will be impressed with the Gold Cube!

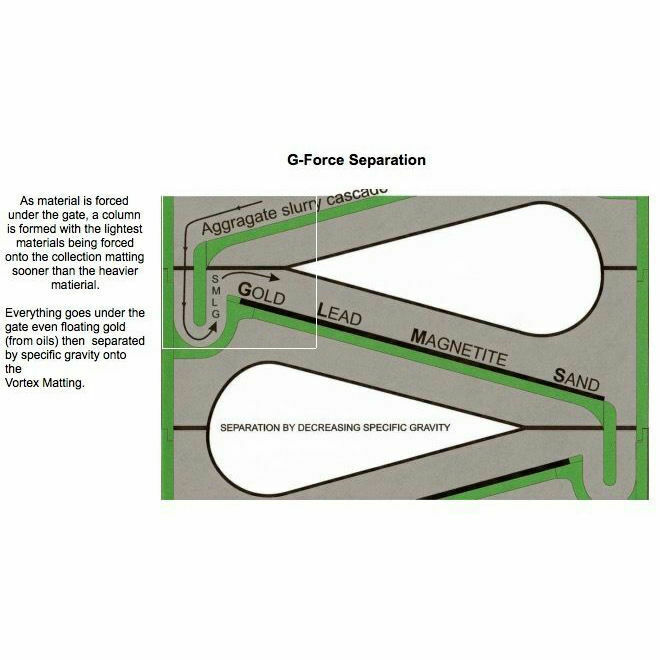

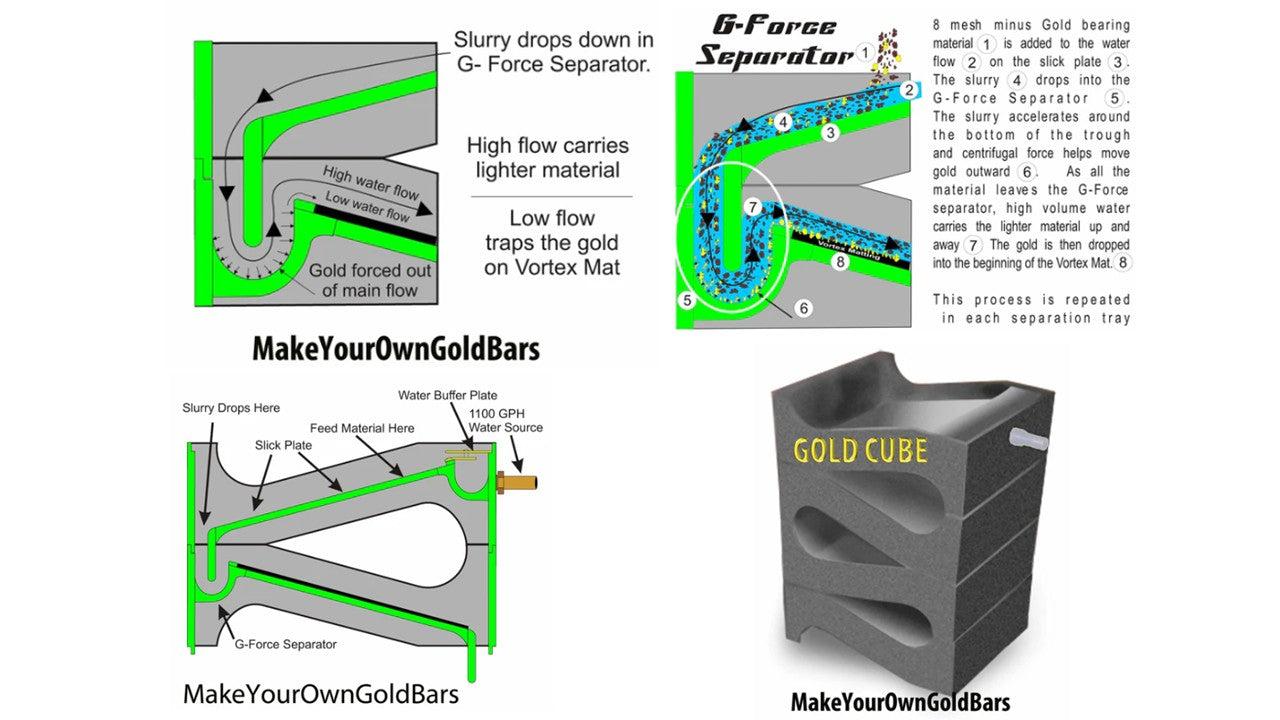

The Gold Cube design eliminates surface tension in what we call the “G-Force Separator”, which forces everything below water under a gate. This breaks the surface tension and forces the gold to the bottom of an axial trough. The combination of gravity and hydraulic pressure makes it impossible for the gold to float or sail.
To illustrate this — If you were to drop a flat washer and a steel bearing, both weighing the same, into a swimming pool at the same time, the steel bearing would hit bottom, first. In the same way, the flatter the gold; the more time it takes to settle.
Location is not the only factor to be aware of, though we have found that there are areas where the gold is typically very flat. Keep in mind, it is all about the shape of the gold, and not where it is located.
The beauty of the Gold Cube is that you can always add a tray, trommel, or a Gold Banker when it becomes necessary.
