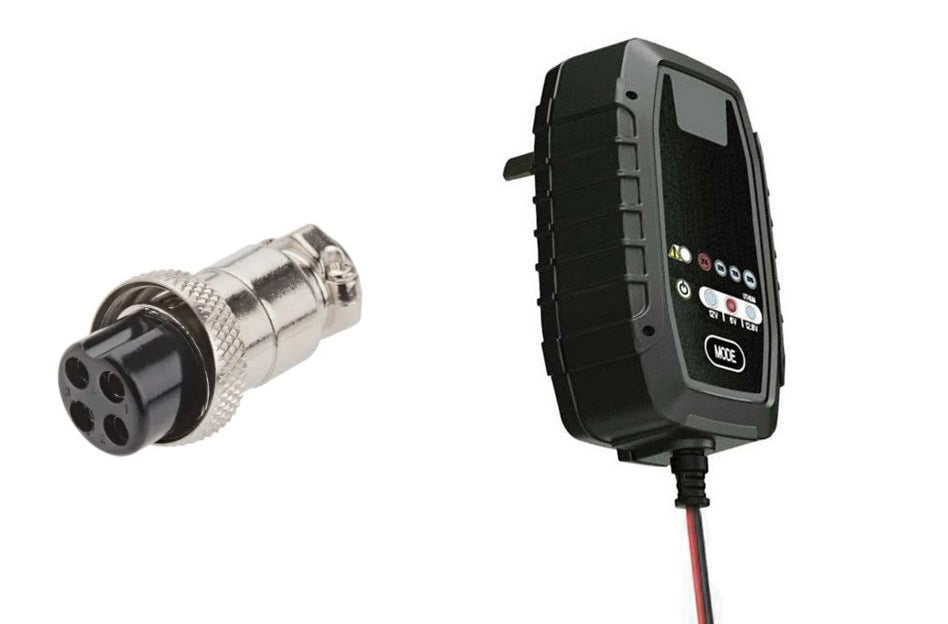

An intelligent battery charger to keep your batteries in peak working order. Suitable for 6V or 12V Lead Acid batteries between 1.2Ah – 26Ah, or 12.8V LiFePO4 from 2Ah to15Ah. The seven charging modes keep batteries fully charged and in peak condition, and can also recover slightly sulfated batteries to increase battery life. LEDs on the front panel indicate the state of charge and a push button enables you to select the appropriate charge mode. The housing can be permanently mounted using the integrated mounting holes and the IP65 weatherproof rating means it can handle a little rain. The charger is mains powered and features short circuit, overload, incorrect polarity, reverse battery, and safety timer protection.
6V/12V dual function charger
Suitable for Lead Acid and LiFePO4 batteries
7 state intelligent charging modes
Can recover slightly sulfated batteries
Battery Support:
Sealed, Gel, AGM or Flooded Lead (6/12V, 1.2Ah – 26Ah)
LiFePO4 (12.8V, 2Ah – 15Ah)
Lead Acid: 7.3V/ 14.4V DC
LiFePO4: 12.8V/ 4 cells
Protection: Short circuit, Overload, Wrong polarity, Reverse Battery, Safety Tim
IP Rating : IP65
Dust/Particle Ingress Protection : 6 – Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection : 5 – Water jets
Length : 107.0mm Width : 63.0mm Depth : 34.0mm
Mains Voltage Range : 220.0V, 250.0V
Frequency : 50.0Hz, 50.0Hz
Rated for AU Mains : true
Mains Max Current : 0.6A
Type of Batteries : Deep Cycle SLA, Lithium Ferrous Phosphate (LiFePO4)
Charger Output Voltage : 7.3V, 14.4V
Charger Output Current : 800.0mA
Connection Type : Alligator Clips
Reverse Polarity Protection : true
Additional Functions : Short Circuit Protection, Overload Protection, Safety Timer Protection
This locking plug is for use in low voltage and signal applications. This multi-pole shielded connector has tin plated contacts and is designed to connect to appropriate chassis sockets for a secure screw locking connection.
Features and Benefits
• Maximum 6 mm diameter cable
• Tin-plated brass contacts protect against corrosion and wear
• Threaded-type connector
• Current rating of 1 A
• Voltage rating of 48 V
• Complies with standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 (handled and packaged in controlled environments that prevent damage due to electrostatic discharge)
